Water Supply Equipment

Diesel Pump

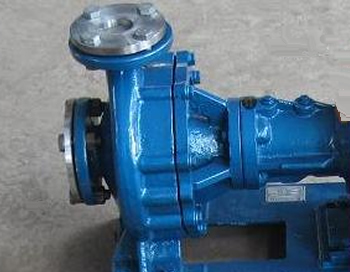

RY type series heat conduction oil pump

RY series heat conduction oil pump is widely used in the heating system of heating medium in our country. It has entered various industrial fields such as petroleum, chemical industry, rubber, plastics, pharmacy, textile, printing and dyeing, road construction, food, wood processing, etc. It is mainly used for It is an ideal hot oil circulating pump for transporting weakly corrosive high-temperature liquids without solid particles. The use temperature is less than or equal to 350 degrees Celsius.

Features:

Performance parameter table:

泵型號	流量 m³/h	揚程 m	轉速 r/min	功率(KW)		效率 %	電機(Y型)
泵型號	流量 m³/h	揚程 m	轉速 r/min	軸功率	配用功率	效率 %	機座號
20-20-100	1	10	2800	0.09	0.37	26	AQ₂-7112
20-20-125	1.5	22	2800	0.22	0.75	30	801
40-25-160	10	28	2900	1.72	2.2	45	90L
25-25-160	3	27	2900	0.53	1.5	30	90S
32-32-160	6	28	2900	0.85	1.5	50	90S
50-32-160	12.5	30	2900	1.9	3	57	100L
50-32-200	18	40	2900	3.92	5.5	50	132S
50-32-200A	16	32	2900	3.35	4	42	112M
50-32-250	12.5	80	2900	6.2	11	44	160M
65-50-160	20	32	2900	3.17	5.5	55	132S
65-40-200	30	48	2900	6.3	7.5	62	132S
65-40-200A	25	35	2900	4	5.5	59	132S
65-40-250	25	80	2900	10.3	15	53	160M
65-40-250A	20	51	2900	5.67	7.5	49	132S
65-40-318	25	125	2900	18.9	30	45	200L
65-40-315A	22.5	100	2900	15.3	22	40	160M
80-50-200	50	50	2900	9.7	15	70	160M
80-50-200A	45	40	2900	7.8	11	63	160M
80-50-200B	40	32	2900	6.37	7.5	55	132S
80-50-250	50	80	2900	17.1	22	58	180M
80-50-250A	43	60	2900	12.8	15	55	160M
80-50-315	50	125	2900	30.4	45	56	225M
80-50-315A	45	100	2900	23.6	30	52	200L
100-65-200	94	44	2900	18.5	22	74	180M
100-65-200A	94	44	2900	16	22	70	180M
100-65-200B	87	38	2900	13.8	15	65	160M
100-65-200C	80	32	2900	11.8	15	59	160M
100-65-250	100	80	2900	32.06	37	68	200L
100-65-250A	95	72	2900	29	37	64	200L
100-65-250B	90	65	2900	26.2	30	61	200L
100-65-250C	85	50	2900	20.3	30	57	200L
100-65-315	100	125	2900	50.06	75	68	280S
100-65-315A	95	113	2900	45.23	55	64.63	250M
100-60-315B	90	100	2900	40.5	55	60.5	250M
100-65-315C	82	84	2900	34.76	45	54	250M
125-100-200	200	50	2900	35.4	45	77	225M
125-100-200A	178	40	900	26.6	37	73	200M
125-100-250	200	70	2900	47	55	80	250M
125-100-250A	190	63	2900	41.6	55	78	250M
125-100-250B	180	57	2900	37.9	45	74	225M
125-100-250C	170	51	2900	32.15	45	72	225M
125-100-250D	150	70	2900	40	45	70	225M
150-150-200	350	50	2900	60	75	80	280S
150-150-200A	313	40	2900,	45	55	76	250M
200-150-400	350	50	1450	61.8	75	78	280S
200-150-400A	330	45	1450	52.8	75	77	280S
250-200-400	500	50	1480	86.2	110	79	315S
250-200-500	500	80	1480	136	160	76.5	315M `
250-200-500A	400	50	1480	75	90	73	280M
